Chopped Strand Mat (Powder Bonded) P02

Chopped Strand Mat (Powder Bonded) P02

E6CE P02 Powder Chopped Strand Mat is made of randomly distributed chopped E6-CR glass strands held together by an powder binder.

P02 is compatible with unsaturated polyester, vinyl ester, epoxy and phenolic resins.

E6CE P02 is designed for use in hand lay-up, filament winding, compression molding and continuous laminating processes. Its end-use applications include boats, bath equipment, automotive parts, chemical corrosion resistant pipes, tanks, cooling towers and building components.

Glass Type:E6-CR


 Product Features

  • High tensile strength, allowing for use in hand lay-up process to produce large-area parts.
  • Good wet-through and fast wet-out in resins, rapid air lease
  • High mechanical strength of parts
  • Superior acid corrosion resistance

Product Specifications


Unless otherwise specified, powder chopped strand mats should be stored in a cool, dry, water-proof area. It is recommended that the room temperature and humidity be always maintained at 15°C to 35°C and 35% to 65% respectively.

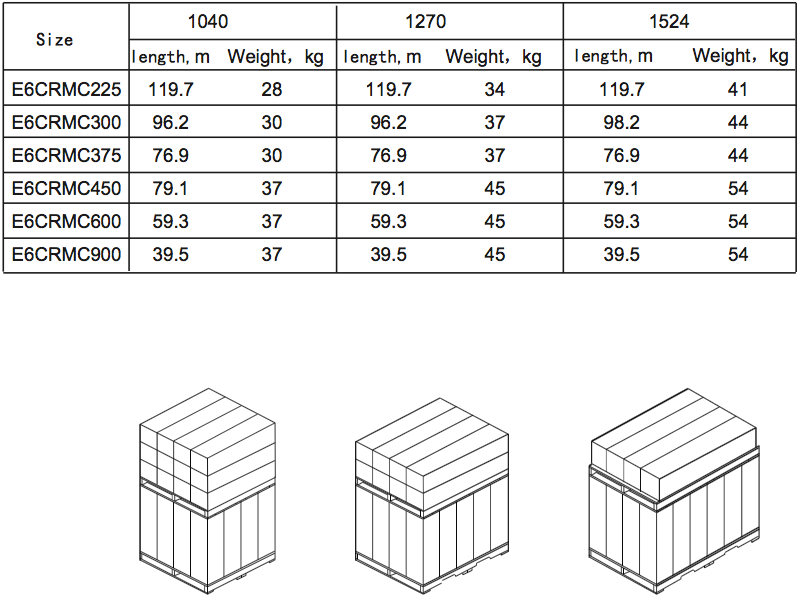

Each Powder Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 90mm. The roll outside diameter is approximately 265mm. Each roll is wrapped up in plastic film and then packed in a cardboard box. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.

Hand Lay-up Process

Hand Lay-up is an open molding process.

The reinforcement, in form of fiberglass strands, mat, or woven roving, is first laid into a mold which has been coated with a release agent and a gel coat. Then a resin mix is applied by hand, using a brush or spray gun. A roller is then used to ensure uniform impregnation, complete wet-out and removal of any trapped air bubbles.
